Directions

Most fields are optional. You may enter fractions, such as '5 3/4'. The exceptions to these rules are given below.
Required Fields (*)
Required fields are marked with * -- they must be filled in.
Number Only Fields (#)
Fields marked with # must contain decimal numbers only. (e.g. '12', '5.25')
Torsion Axle Order Form

Please select a unit of measurement:
Customer Information

Contact Name : *
Company: *
Phone number: *
(fill in only those required)

Choose a Hub:
(Click a box)

Bolt Centers


# of studs


4" 4½" 4¾" 5" 5½" 6½" 9.44"
4
5
6
8

Required Information
Axle Style:

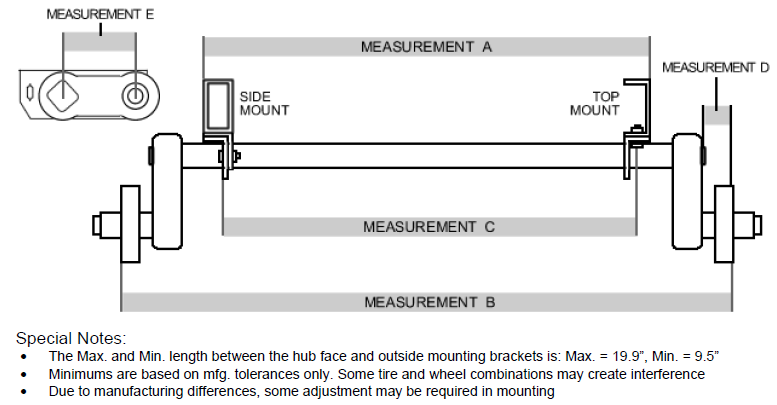

A - Main Rail: Outside to Outside:
B - Hub Face to Hub Face:
C - Mounting Bolt Center:
D - Torsion Arm to Hub Face:
E - Torsion Arm (Axle center to spindle center):
Axle Quantity:
Axle Capacity:
Axle Type:
Mount Format:

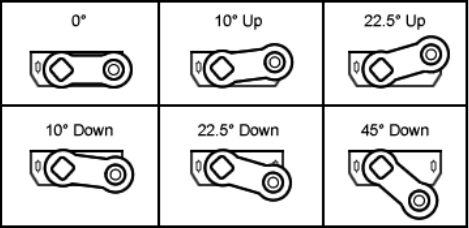

Axle Degrees: Mounting Bracket Directions:


Quantity: * #
