Directions

Most fields are optional. You may enter fractions, such as '5 3/4'. The exceptions to these rules are given below.
Required Fields (*)
Required fields are marked with * -- they must be filled in.
Number Only Fields (#)
Fields marked with # must contain decimal numbers only. (e.g. '12', '5.25')
Torsion Springs--Specification Form

Customer Information
Contact Name : *
Company: *
Phone number: *

Mandatory Specifications   (fill in only those required)

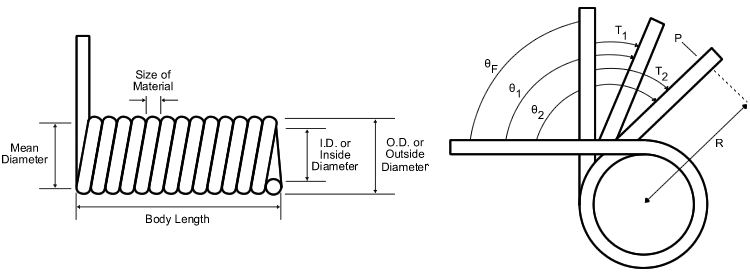

1. To work over inch diameter shaft.
2. OUTSIDE DIAMETER
    a. inches max, or
    b. inches +- inches
3. INSIDE DIAMETER
    a. inches min. or
    b. inches +- inches
4. Length of space available inches
5. Maximum wound position turns
    or ° from free position.
6. Length of moment arm (R) inches
7. Direction of helix:
8. Type of ends
(Click one)

Advisory Data   (fill in only those required)
1. Wire diameter inches
2. Mean coil diameter inches
3. Number of coils
4. θF = ° free angle reference

Special Information   (fill in only those required)
1. Type of material
2. Finish
3. End use/application (150 Characters or less - 0 used):
4. Other

Quantity: * #
